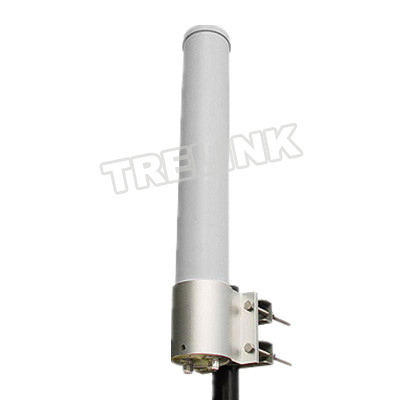

5 GHz 13 dBi Dual Polarity MIMO Omni directional Antenna
Payment Terms: |
T/T,WU,Paypal |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
TLOD-5158-13VH-2N
Packing:
carton
Type:
Outdoor
Frequency Range:
5150-5850 MHz
Means of Transport:
Ocean,Land,Air
Delivery Date:
10days
Brand Name:
TreLink
MIMO Antenna:
MIMO Omni Antenna
The TreLink 5.1-5.8 GHz Omni-directional Antenna combines dual polarization (vertical and horizontal ) with 13 dBi high gain.
The TreLink 5.1-5.8 GHz Omni-directional Antenna combines dual polarization (vertical and horizontal ) with 13 dBi high gain. This high performance antenna designed for MIMO point-to-multipoint applications.The typical applications include: 5.1-5.8GHz Outdoor Wireless LAN systems ,supports 1x2 and 2x2 MIMO AP/Router,IEEE 802.11 a/n applications ,WiMax, WISP, WiFi, Communication.It features Two integrated diversity antennas plus dual feed system in a single enclosur.
For additional information,please check with our sales team!
Electrical Specifications |
|
Model | TLOD-5158-13VH-2N |
Frequency Range | 5150-5850 MHz |
Gain | 13 dBi |
VSWR | ≤2.0:1 |
Polarization | Horizontal and Vertical |
Horizontal Beamwidth | 360° |
Vertical Beamwidth | 7° |
F/B Ratio: | >30 dB |
Cross-Polar Ratio: | >20 dB |
Input Impedance | 50 Ω |
Maximum Power | 100W |
Lightning Protection | DC Ground |
Mechanical Specifications |
|
Connector | 2*N Female |
Antenna Dimention(diameter*length) | Ø62*550 mm |
Weight | 2 kg /4.4 lb |
Radome Material | UV-PVC |
Wind Velocity | 210 km/h |
Working Temperature | -40~+65℃ |
Mounting Pole | Ø40-Ø60 mm |
